A Show Controllers Guide to PCStage

An unofficial guide by David Buckley.

PCStage Index

Introduction

Depending on your point of view, PCStage is a lighting controller with Multimedia extensions or a sound effects playback system with a lighting controller or a (multiple) cue-list based show controller that can also control lighting control and do sound playback.

Eh?

First off, let me say that this isn't official information for PCStage; I've just written up this page as a happy user of a great product, in the hope that someone finds it useful.

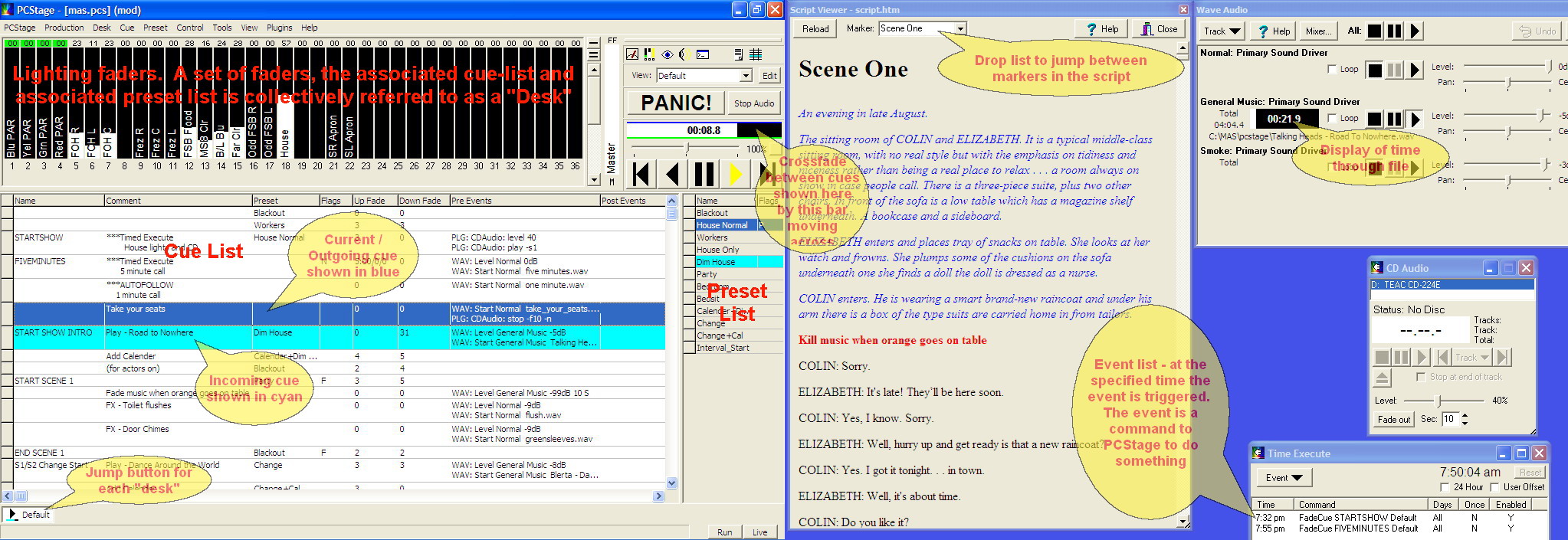

Secondly, a picture is worth a thousand words, so I've put up a screenshot of a real PCStage production, for which it did lighting control and sound playback. My PC setup is twin screened, so this is a big, full resolution screenshot, about half a meg, I'd advise you open it in a separate window, or download and view in your favorite graphics viewer. The Big Screenshot

Back to the plot. PCStage is a bit too flexible for convenient pigeonholing, so I'll try and list some of the things it does.

Lighting

PCStage is a lighting control package, supporting today a single DMX512 universe. Support for as many as three universes is in testing as I write this.

As PCStage started as a lighting control product, it has the user interface paradigm and terminology of a lighting control package. The main screen is split into a number of sections. Three of the four sections, namely the faders, the preset-list and cue-list are grouped together and called a desk. There can be many desks. The fourth section, the control panel section is fixed and common across the desks.

As this is a show controller's introduction, I won't dwell on the lighting control features, but suffice to say that PCStage is a capable lighting control desk for both conventional and robotic lighting fixtures. It's not a Grand MA, but its pretty useful.

Audio

PCStage can do WAV or MP3 audio. You can have an unlimited number of stereo audio "tracks", each of which has its own volume and pan control, which are of course automatable. Each track can be independently assigned to a real audio device (WDM) on your PC. Each track can play back one file at once, so to have multiple simultaneous files playing back, just create more tracks. If you have multiple soundcards or a multiple output soundcard or USB audio device, as long as they have WDM support, you can assign tracks to any output device.

Additionally, there is support for mono .WAV file playback to ASIO devices for those high-end specialist devices that don't have WDM support.

Also, PCStage has support (using a plug-in) for CD Audio. Multiple drives are supported, and automation of track selection and volume, but there is not the comprehensive assignment that .WAV tracks offer - you need to do that through Windows.

MIDI

PCStage has a reasonable MIDI implementation, it can generate all channel voice messages except pitch wheel, but it doesn't do channel mode, system common or system realtime messages, or sysex. Incoming MIDI messages can be used as triggers - see later. MIDI messages can also be used to control lighting using "MIDI fader mapping".

MSC - MIDI Show Control

PCStage can generate MSC messages, using the MSC plug-in. Received MSC messages can be used as triggers - see later.

Serial

PCStage can generate serial (RS232) messages. Received serial messages can be used as triggers - see later.

TCP/IP

PCStage has a TCP/IP socket implementation that allows other TCP/IP compliant software to submit PCStage commands. PCStage has no outgoing TCP/IP support.

Other

There is a dinky button plugin that allows a set of windows buttons to be created that issue PCStage commands

The PC's keyboard can be used to generate triggers.

The PC's joystick port can be used to generate triggers.

The MediaSync plugin enables a second video display (for example connected to a projector) to show video, allowing a single screen video playback with no external hardware. This plugin will also play back audio files. The other interesting feature of this plugin is that it allows triggers to be generated relative to track playback position, accurate to about a tenth of a second.

Cue Lists

From the show controller's perspective, cue lists are probably the most important element of the control system. PCStage, of course, has cue lists, and this section details cue lists and the ways to work with them.

Some PCStage terminology.

PCStage can be driven by commands. One of the most frequently used commands is the FadeCue command, which causes cue list movement. A FadeCue command can be either to step to the next (or previous) cue, or to a specific cue. Commands can be input manually (i.e. you type the command string into a text input), or can sent to PCStage across a network using TCP/IP, or can be issued by a trigger mechanism.

A trigger is an input that causes a command to be executed. The input could be any type of input, a key press, a MSC message, anything that PCStage supports. You configure a trigger by going to the list editor for the trigger type (e.g. MIDI), defining the message that PCStage looks for (e.g. a specific note on), and the command to be executes when that trigger is received (e.g. FadeCue next Default, which would step the cuelist on the Default desk on one step).

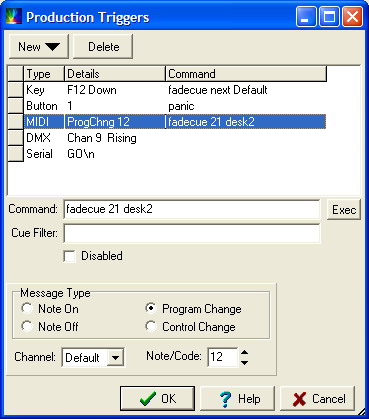

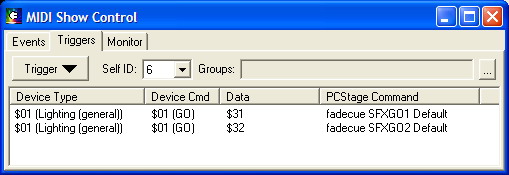

There are two places where triggers are set up, either in the Production / Triggers... menu item, which set up triggers for those things native to PCStage, as shown in the first screenshot below, or for plugins, each has their own mechanism, as shown in the second example screenshot (for MSC) below.

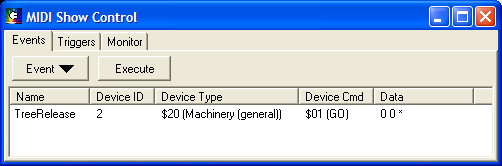

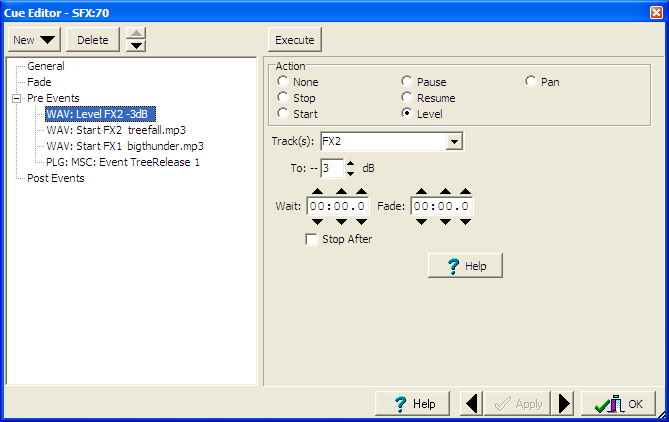

An event is something that PCStage does, other than a lighting change. Lighting changes are configured in the cuelist by specifying a preset, and a selection of cross-fade times. Events are specified using the event editor mechanism.

There are two types of event, pre-fade and post-fade. Pre-fade events are executed as soon as the cue-list item has been invoked. Post-fade events happen after the fade has completed. Big gotcha - if there is no fade time set then the post-fade events are never executed! Fade times are set on the "Fade" tab (not shown).

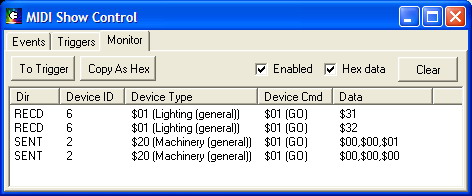

MSC Monitor

The third tab of the MSC window is a monitor, and as MSC is the core component of many control scenarios, its worth illustrating here:

Obtaining PCStage

The official PCStage website is here.

To set up a PCStage system, go to the download download and install the current production version of the product.

The program should be installed in c:\pcstage.

Next, following the links on the download pag, download the current beta release. This usually comes as a zip named pcsbeta.zip, which just has a single file, the new version of pcstage.exe. You may wish to save your existing pcstage.exe before copying in the new beta pcstage.exe

Finally, following the links on the download page, download plugins to taste. These are installed in a c:\pcstage\plugins directory, which you need to create yourself. Documentation for each plugin is in the form of an HTML file in the plugins directory.

Pricing

PCStage software is priced at zero dollars / pounds / yen / euro / [whatever your currency is] for all uses except DMX512 lighting control. If you need to do lighting, and I encourage you so to do :-), you need to purchase the PCStage DMX512 output device, as detailed on the official PCStage webpage. No other DMX512 "dongle" will work. It is through the sales of these boxes that the ongoing development of PCStage is encouraged.

Example

To get you started, I've setup an example from John Huntington's "Control Systems for Live Entertainment", the thunderstorm example.

This should work out of the box, as long as its unzipped into c:\pcstage\example\thunder, otherwise files will not be found. Speaking of files, the audio files are fairly low res to keep the download size manageable, but they give the idea. Example file, 477K

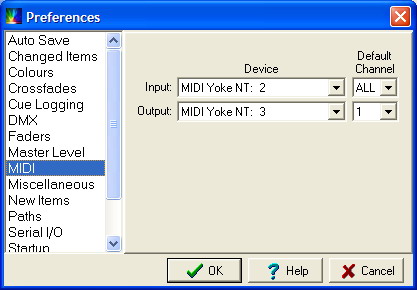

For this to work, you need to have the MIDI ports set up on your machine, in PCStage/Preferences/MIDI. If you dont have real MIDI ports, download MIDI Yoke and MIDI-OX, which provides virtual MIDI ports, from here

In the book version, the thunderstorm is presented via a single cue-list, and I've canned the thunderstorm using the same approach. However, I've wrapped the thunderstorm into a baby one-scene show with lighting control and an announcement on another "master" cue-list, thus creating a simplified real-life full show scenario.

You can also trigger this show from an external MSC controller, I've configured the triggers to be Lighting / Go / '1' for the first set of effects, and '2' as the second. (F0 7F 06 02 01 01 31 F7). You can of course change the trigger commands, most easily by capturing the command you want to respond to in the monitor, press the "To Ttrigger" button to make it a trigger, then edit the triggers to have the same PCStage commands as the existing example. The then original triggers can be deleted.

If you have SCS Professional, then here is a two-item trivial example that will trigger the thunder show. If you are running it all on one PC, then the above mentioned MIDI Yoke will provide virtual MIDI ports to connect the applications together.

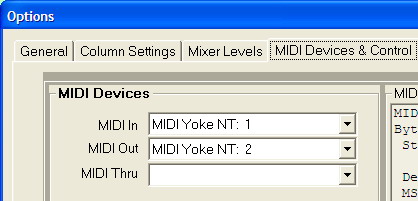

In this pair of screenshots, virtual MIDI port "MIDI Yoke NT: 2" is the common "port" being fed MIDI by SCS, and PCStage is configured to accept MIDI on this virtual port.


You can contact the author by using this contact form.
